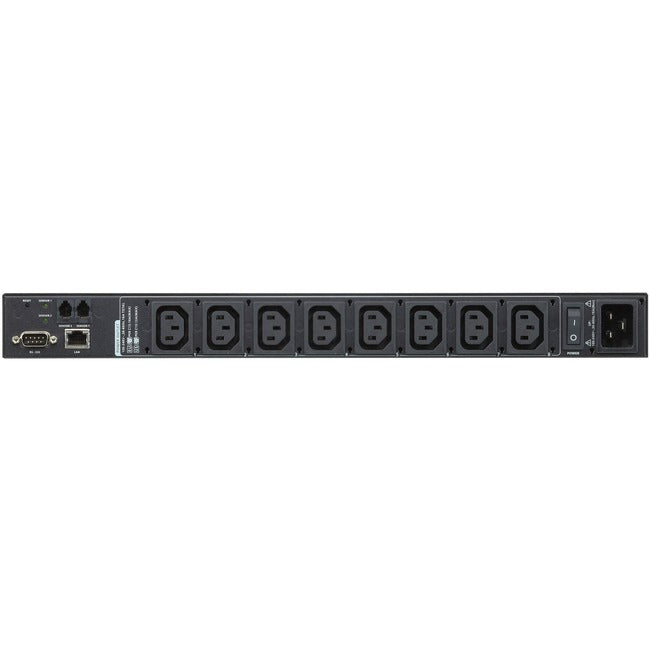

ATEN eco PDU PE6208AVG 8-Outlets PDU

Power Distribution

• Space saving rack mount design with rear mounting
• IEC or NEMA outlet models
• 3 x 7 segment front panel LED shows Current / IP Address
• Remote users can monitor outlet status via web browser
• Safe shutdown support
• Separate power for the unit and its power outlets - the user interface is still accessible even when an overload trips the circuit breakers

• Remote power control over TCP/IP via built-in 10/100 Ethernet port (PE6 / PE8 only)
• Network Protocols: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping, Telnet
• PDU Power Management software - eco Sensors
• Supports SNMP Manager V1, V2 & V3

• Remote power control (On, Off, Power Cycle) by individual outlet (PE6 / PE8 only)
• Multiple power control methods - Wake on LAN, System After AC Back, Kill the Power (PE6 / PE8 only)
• Power-on sequencing - set the sequence and time delay for each outlet to power-on equipment in the correct order (PE6 / PE8 only)
• Easy setup and operation via browser-based user interface
• Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
• RTC support to keep the clock/timer running without power
• Supports up to 8 user and 1 administrator accounts
• Proactive Overload Protection (POP) automatically powers off outlets during current overloads to protect connected devices (PE6 / PE8 only)

• Power status measurement at the bank level (PE5 / PE6), or bank and outlet level (PE7 / PE8 only)
• LED indicators for current and IP address
• Real-time current, voltage and kWH displayed in a browsed-based UI for monitoring
• Environment monitoring via external sensors for rack temperature and humidity readings and alerts
• Current, voltage, power dissipation, energy consumption, temperature and humidity threshold settings
• Supports naming of outlets
• User outlet access rights on an outlet-by-outlet basis
• Event logging and syslog support
• Supports Management Information Base (MIB) files for SNMP
• Upgradeable firmware
• Multilingual support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian

• Two-level password security
• Security features include password protection and advanced encryption technologies - 128 bit SSL
• Remote authentication support: RADIUS
