B+B SmartWorx Industrial Serial to Fiber Optic Converters

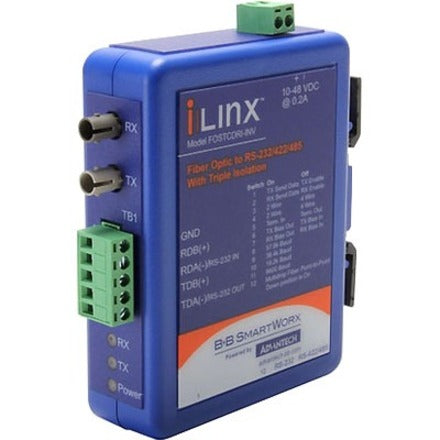

Model BB-FOSTCDRI is a premium industrial serial to multi-mode fiber optic converter. Its rugged design is UL Approved and certified for Class 1/Division 2 industrial environments. It extends data communications up to 4 km (2.5 mi). It provides three-way optical isolation on the input, output and power lines.

In addition to direct point-to-point connectivity, it is capable of operating in a multi-drop mode. This allows one serial device to communicate with up to 31 other devices around a fiber ring. Since it supports mixed standards, you can replace other converters and isolators and add the EMI / RFI protection inherent to fiber optic communications.

In RS-232 mode, the converter supports Transmit and Receive data. Handshaking signals are not passed through. An Automatic Send Data Control circuit controls the RS-422/485 driver chip, eliminating the requirement for external software.

Easy to install and configure, it has a 12-position DIP switch on the bottom to configure RS-422/485 parameters. Serial data and power cables connect to removable terminal blocks. ST connectors are used for the fiber.

A 10-30 VDC external power source is required (power supply not included, sold separately).

Model BB-FOSTCDRI-INV features an "inverted fiber state" and is suitable for applications requiring the fiber optic transmit light to be Off in the idle state.
