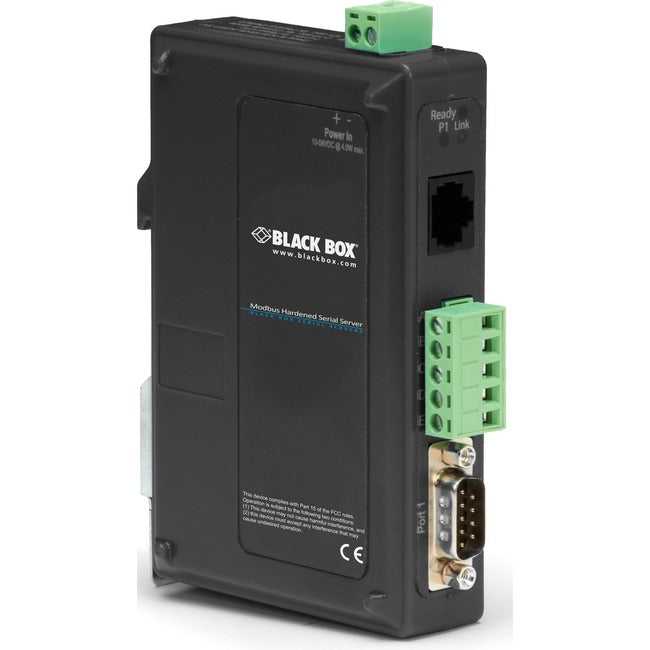

Black Box LES400 Device Server

• UL® Listed for use in Class 1 Division 2 hazardous areas.
• NEMA TS-2 rated for use in transportation applications.
• Routes Modbus traffic based on Modbus ID, and remaps conflicting Modbus IDs.
• Offers Modbus messaging priority control, selectable by source or function code.
• Features a built-in Web server and easy-to-use management software.
• It can be easily integrated into most Modbus network configurations.
• Converts ASCII to RTU as well as ASCII or RTU to Modbus TCP.
• Features a DB9 port and terminal block for serial connections.
• Equipped with a 10-/100-Mbps port for TCP connectivity.
• Boasts high throughput with low latency.
• Slim IP30 enclosure saves you on DIN rail space.
• Includes a DIN mounting clip and spring.

Easily integrate an older serial Modbus device into your Ethernet Modbus network. This rugged serial server gives you a simple way to migrate to an Ethernet-based industrial control system - without having to replace the older Modbus equipment you've already invested in.

Translating older and newer protocols, the 1-Port Modbus Hardened Serial Server converts mismatched serial baud rates and settings, enabling the serial Modbus device to become a node on your Ethernet network. Older PLCs can then talk to newer sensors, meters, scales, and other industrial monitoring and automation instruments.

Configuration can be done through a direct serial connection or via the network, so you can improve productivity and cut down on the amount of time required to troubleshoot a serial device on a factory floor or in a remote location. Configure devices, upgrade firmware, and more - all this from the comfort of your office.

A simple-to-install, user-friendly software application enables programming. No time-consuming setup is required. The software also features Modbus messaging priority control and allows management through multiple TCP/IP client sessions. The serial server can be configured for TCP client or server operation.

A built-in traffic monitor provides instant verification of a successfUL® installation, and you can view the serial server's operational status in real-time.

The 1-Port Modbus Hardened Serial Server has a standard DB9 serial port for RS-232 device connections and a removable terminal block for an RS-422 or RS-485 device connection. It also has an autodetecting 10BASE-T/100BASE-TX port for the Ethernet network connection.

Either device on either side can be a Modbus master or slave, customizable to your application. A serial master can be configured to control an IP slave, for instance. Also, a serial slave device can be accessed over a LAN or WAN by up to 16 simultaneous Modbus TCP masters.
