Kramer DVI Rx/Tx Extender Over Ultra-Reach MM Fiber

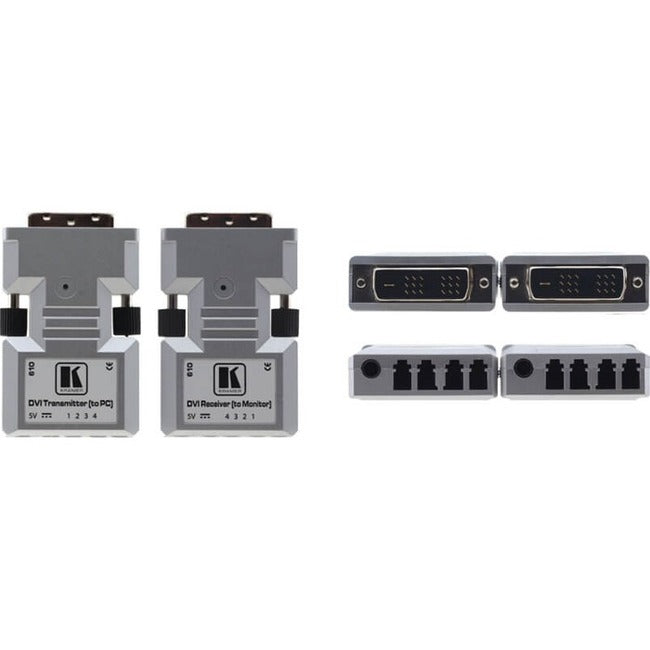

The 610T and 610R are a detachable optical transmitter and receiver for sending DVI signals with resolutions of up to 1920x1200 at 60Hz over LC optical cable. The 610T attaches to the transmitter side of a fiber optical cable and the 610R connects to the receiver end and both are sold as a set.

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
• HDTV Compatible.
• Not HDCP Compliant.
• System Range - Up to 400m (1312ft).
• EDID Capture - Copies and stores the EDID from a display device (610T).
• Cable - Multimode fiber optic cable with 4 simplex or 2 duplex LC fiber connectors.
• Power - External power adapter (supplied) or 5V DC from source.

Applications

• Digital flat panel displays, plasma display panels and projectors for medical appliances, aero and traffic control, factory facilities, banks, conference rooms and auditoriums
• Kiosks with digital flat panel displays for information display
• LED signboards in streets and in stadiums
• Digital signage
