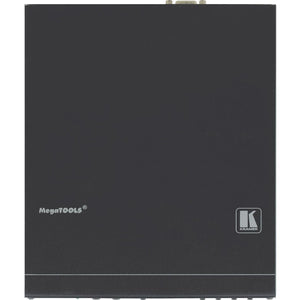

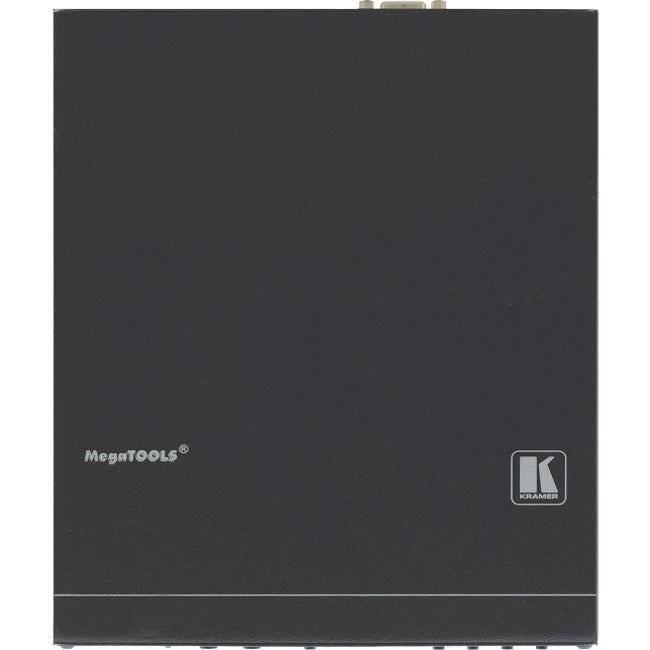

Kramer MegaTOOLS VP-428H2 Video Extender Transmitter

VP-428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP-428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS-232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up-scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.

• PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology.
• HDMI 2.0 Compliant.
• HDCP 2.2 Compliant.
• HDBaseT Certified.
• System Range - For the HDBaseT output, extended reach of up to 100m (330ft) using Kramer recommended cables.
• Provides Power (PoE) on HDBaseT Output to Compatible Devices.
• Max. Resolutions - Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
• Max. VGA Resolution - 1920 x 1200 @60Hz.
• Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness are set individually for each input.
• Constant Output Sync - No output disruption while switching between inputs when no video is detected.
• Audio - Unbalanced stereo and embedded audio.
• Auto Input Switching - Last connected & auto-scan, selectable.
• HDBaseT Tunneling - Supports full HDBaseT tunneling of Ethernet and RS-232 data.
• Non-Volatile Memory - Saves final settings.
• Flexible Control Options - Front panel push buttons, RS-232, OSD (on-screen display) menu with front panel navigation buttons.

Applications

• Educational - classrooms, lecture theaters
• Projection systems in conference rooms, boardrooms, hotels and churches
• Home theater up-scaling
