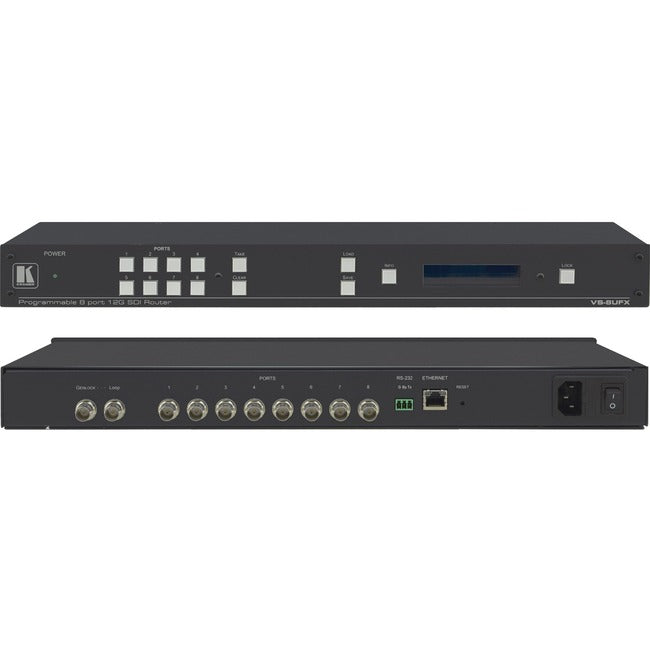

Kramer VS-8UFX 8-Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

VS-8UFX is an 8-port matrix switcher for SDI signals for up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x7 distribution amplifier, 7x1 switcher, 4x4 matrix switcher or any other possible input-output combination. VS-8UFX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.

• Max. Data Rate - 12Gbps.
• HDTV Compatible.
• Multi-Standard Operation - 12G-SDI - SMPTE ST-2082-1, 3G-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI - SMPTE 259M/344M
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Supports ANC Data - Embedded audio, teletext, time code, etc.
• Cable Equalization - Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
• Clean Switching - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
• Versatile Genlocking - Using an analog signal.
• Memory Locations - Stores 8 multiple switches as presets to be recalled and executed when needed.
