TRENDnet DIN Rail 48V 120W Power Supply for TI-PG541

• Industrial power supply with integrated DIN-rail mount
• Provides up to 120 Watts of power (48 V, 2.5 A)
• Built-in active PFC (PF > 0.93)
• Short circuit/overload/over voltage/over temperature protection
• High efficiency (91%) design
• UL 508 approved
• 100 % full load burn-in test
• Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
• NDAA / TAA compliant

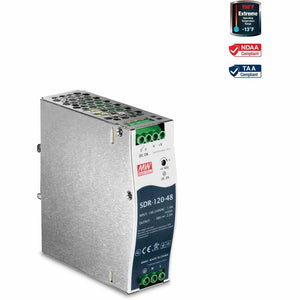

TRENDnet's high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.

Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points

The built-in active Power Factor Controller (PFC, PF>0.93) helps eliminate unusable reactive power

Overload/short circuit/over voltage/over temperature protection

This power supply undergoes a 100 % full load burn-in test

Cooling by free air convection

Metal enclosure with integrated DIN-rail mount

Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)

Certified for UL 508 and TUV EN60950-1

Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
