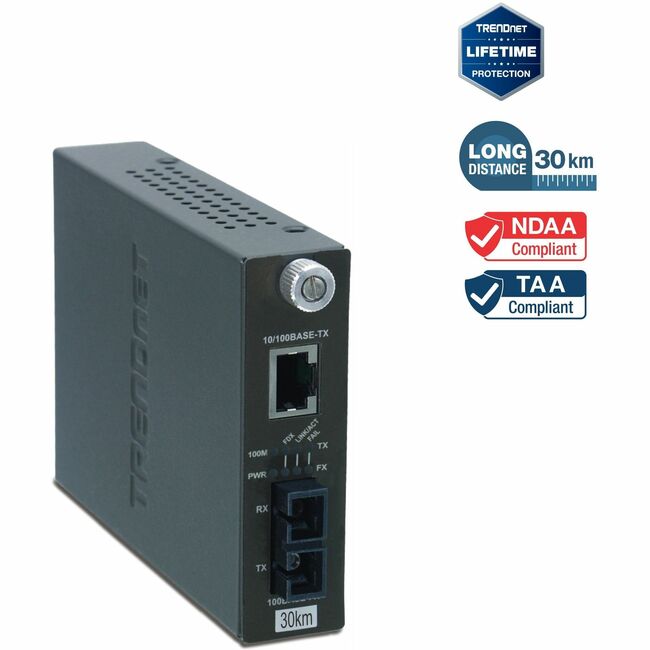

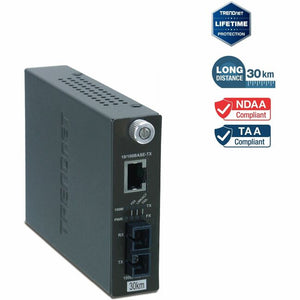

TRENDnet Intelligent 10/100Base-TX to 100Base-FX Single Mode Fiber Converter(30KM)

• SC-type single-mode fiber port connects over distances of up to 30km
• 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
• Supports port level SNMP management
• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer's Warranty
• NDAA / TAA compliant (U.S. and Canada only)

The TFC-110S30i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP management and spans distances of up to 30km (18.6 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards

One 10/100Base-TX auto-negotiation RJ-45 port

Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port

Auto MDIX for 10/100Base-TX port and one 100Mbps fiber port with single-mode SC-type connector

Provides Dip switch to set: Fiber (FDX/HDX), Ethernet (Forced/Auto-Negotiation), Ethernet Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)

Half / Full-Duplex mode selector on Fiber port

Support LLCF (Link Loss Carry Forward, Link Pass Through)

Support LLR (link Loss Return) for FX port

Monitor and configure Ethernet or Fiber's duplex mode, speed, LLCF, LLR, and receive link down information via management module (TFC-1600MM) and chassis (TFC-1600)

Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail, and Speed

Wall-Mountable

Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Lifetime TRENDnet Manufacturer's Warranty

PACKAGE CONTENTS

TFC-110S30i

Multi-Language Quick Installation Guide

Power Adapter (5V, 1A)
