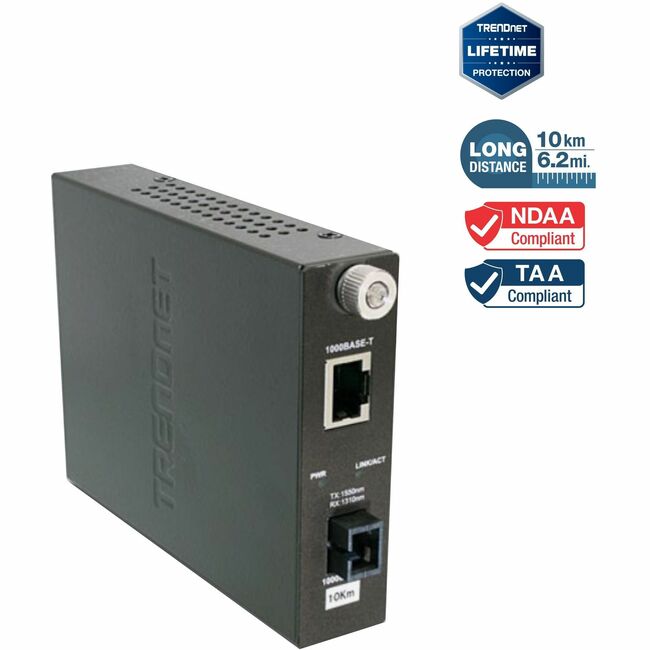

TRENDnet 1000Base-T to WDM TX-1550 Single Mode Fiber Converter(10KM)

• Must use with TFC-1000S10D3
• SC-type dual-wavelength single-mode fiber port connects over distances of up to 10km(6.2miles)
• 1000Base-T Gigabit copper port supports Full-Duplex mode
• Supports port level SNMP management
• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer's Warranty
• NDAA / TAA compliant (U.S. and Canada only)

The TFC-1000S10D5 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 10km (6.2 miles). This module must be used with the TFC-1000S10D3 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.

Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards

1 x 1000Base-T RJ-45 port

1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port

Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)

Support LLCF (Link Loss Carry Forward, Link Pass Through)

Support LLR (link Loss Return) for FX port

Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600

Status LED indicators for Power and Link/Activity

Wall mountable

Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Lifetime TRENDnet Manufacturer's Warranty

PACKAGE CONTENTS

TFC-1000S10D5

Multi-Language Quick Installation Guide

Power Adapter (5V, 1A)
